PIR IP20 25mA Daylight Harvest 12V Microwave Sensor

Name: PIR IP20 25mA Daylight Harvest 12V Microwave Sensor
Brand: Hynall
Price: 1 USD

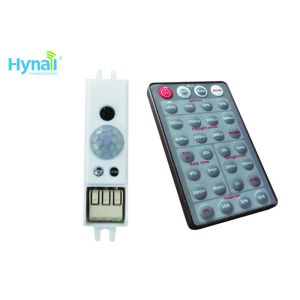

China PIR IP20 25mA Daylight Harvest 12V Microwave Sensor wholesale

Brand Name : Hynall

Model Number : HNS133DHPIR

Certification : RED, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 50,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 24v dc / 12 v dc

Input current : ≥25mA

Driver : 0-10v dimming driver with 12v auxiliary

Color : White

IP rating : IP20

Name : PIR motion sensor module

Contact Now

12v infrared PIR motion sensor with daylight harvest and 0-10v dimming by remote control

Features:

1.	12V DC / 24V DC Input voltage
2.	0~10V dimming output
3.	Dual-processor technology, Daylight harvest function, ideal for office / commercial lighting.
4.	Detection range: ceiling mounting is max. 4m in diameter
5.	Input current:≧10mA
6.	Super compact, flexible to be integrated into any suitable fixtures.
7.	Easy operation and installation
8.	Mounting height is max. 3m
9.	Source current / Sink current: Max. 20mA; 0-10V leads can not be short-circuit.

Size:

PIR IP20 25mA Daylight Harvest 12V Microwave Sensor

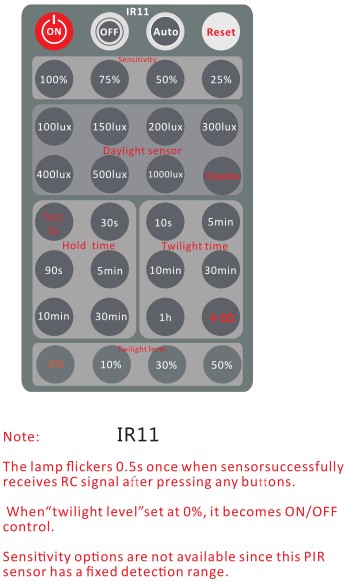

Reset function
Press “Reset” button, all settings go back to factory default settings.
Factory default settings--

Daylight sensor=disable
Hold time=5min
Twilight time=infinity
Twilight level=10%

Note: daylight harvest function is not available in factory defaut mode, since the daylight sensor is disable. You need to choose the appropriate lux threshold first to activate the daylight harvest function

Permanent ON/OFF function

Press “ON” button, fixture goes to permanent on mode, sensor is disabled.
press “Auto”, “Reset” or “Ambient learn” to quit this mode.

Permanent OFF function

Press “OFF” button, fixture goes to permanent off mode,sensor is disabled.

Sensor mode
Press “Auto” button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.

Disable
Press “Disable” button, the daylight sensor will be disabled,
the motion sensor will work always, even in daytime

Daylight harvest function:

Step 1 : Choose the desired daylight sensor threshold, the daylight sensor will automatically switch on when surrounding brightness is below the chosen threshold. If surrounding brightness is over the threshold,the whole daylight sensor will not work at all.

Step 2: During operation, the daylight sensor regulates the light output automatically according to the level of surrounding brightness. The natural light goes up, the artificial light goes down; the natural light goes down, the artificial light goes up.

Wire diagram:

PIR IP20 25mA Daylight Harvest 12V Microwave Sensor
